STD

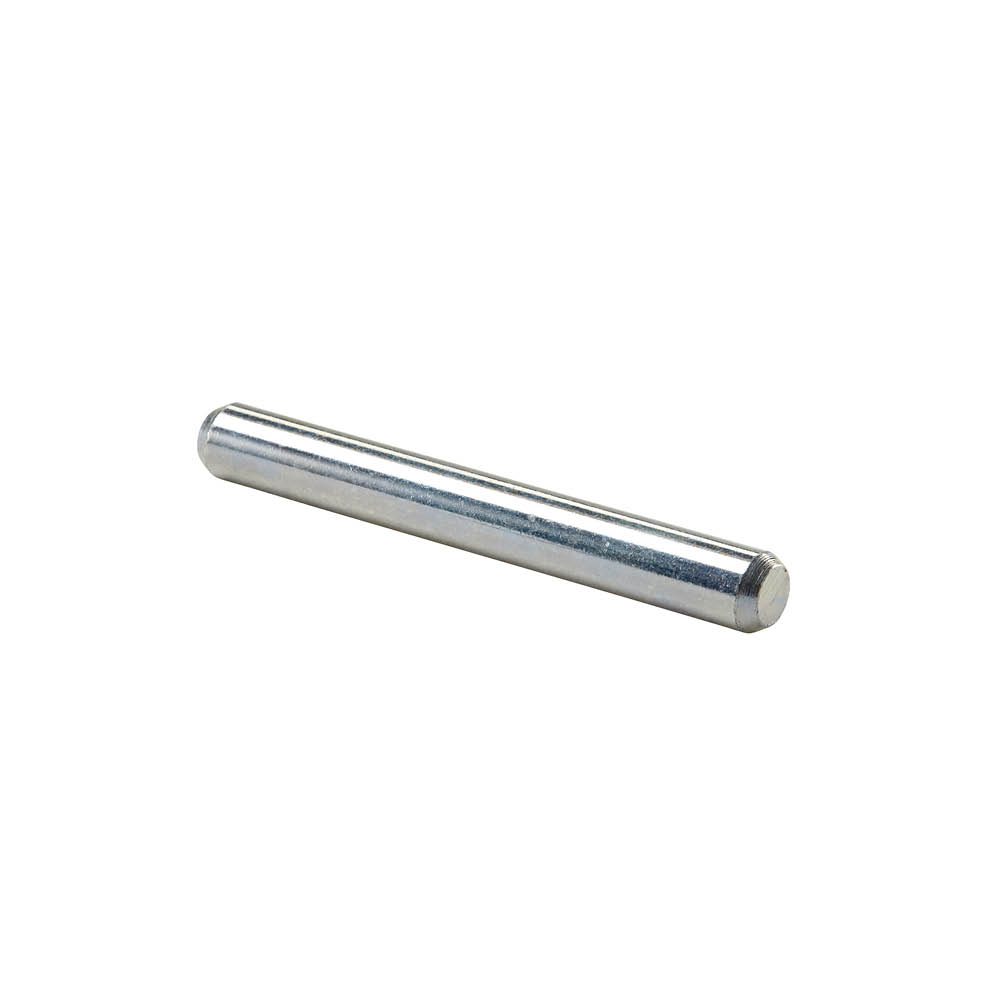

Pen voor verbinders met insteekblad
De pennen vullen de beugels met insteekblad ETNM, TU, TUB, TUBS en CBH aan. Ook geschikt voor de bevestiging van kolomvoeten met insteekblad.
CE-Markering
Elektrolytisch verzinkt staal
Gebruiksklasse 2
Binner
Product Details
Afbeeldingen
Kenmerken
Toepassing
Technische gegevens
Afmetingen en karakteristieke waarden
Afmetingen
| Referentie | Other dimensions data | ||||
|---|---|---|---|---|---|
| Afmetingen bevestigingen[mm] | Verenigbaare producten | Qty per Box | Gewicht[kg] | ||
| d | l | ||||
| STD8X45-B | 8 | 45 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.017 |
| STD8X60-B | 8 | 60 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.024 |
| STD8X70-B | - | - | - | 100.0 | 0.027 |
| STD8X80-B | 8 | 80 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.034 |
| STD8X100-B | 8 | 100 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.042 |
| STD8X120-B | 8 | 120 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.046 |
| STD8X140-B | 8 | 140 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.056 |
| STD8X180-B | 8 | 180 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.08 |
| STD8X200-B | 8 | 200 | TU12, PIG, PBH120G, PISB160G, PIBA | 100.0 | 0.09 |
| STD10X60-B | 10 | 60 | CBH | 100.0 | 0.036 |
| STD10X80-B | 10 | 80 | CBH | 100.0 | 0.048 |
| STD10X90-B | 10 | 90 | CBH | 100.0 | 0.056 |
| STD10X100-B | 10 | 100 | CBH | 100.0 | 0.061 |
| STD10X120-B | 10 | 120 | CBH | 100.0 | 0.073 |
| STD10X140-B | 10 | 140 | CBH | 100.0 | 0.086 |
| STD12X60-B | 12 | 60 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.054 |
| STD12X80-B | 12 | 80 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.074 |
| STD12X90-B | 12 | 90 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.078 |
| STD12X100-B | 12 | 100 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.091 |
| STD12X115-B | 12 | 115 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.1 |
| STD12X120-B | 12 | 120 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.11 |
| STD12X140-B | 12 | 140 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.12 |
| STD12X160-B | 12 | 160 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.15 |
| STD12X180-B | 12 | 180 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.15 |
| STD12X200-B | 12 | 200 | TU16 - 28, ETNM, BTC, PPS, PPSDT, PPSR, PISBMAXIG | 100.0 | 0.16 |
| STD16X120-B | 16 | 120 | PPS, PPSDT & PPSR | 50.0 | 0.22 |
| STD16X140-B | 16 | 140 | PPS, PPSDT & PPSR | 50.0 | 0.23 |
| STD16x160-B | 16 | 160 | PPS, PPSDT & PPSR | 50.0 | 0.3 |
| STD16X180-B | 16 | 180 | PPS, PPSDT & PPSR | 50.0 | 0.31 |
| STD16X200-B | 16 | 200 | PPS, PPSDT & PPSR | 50.0 | 0.32 |
| STD16X250-B | 16 | 250 | PPS, PPSDT & PPSR | 50.0 | 0.4 |
Lengte van de pen = breedte van het gedragen bouwdeel.

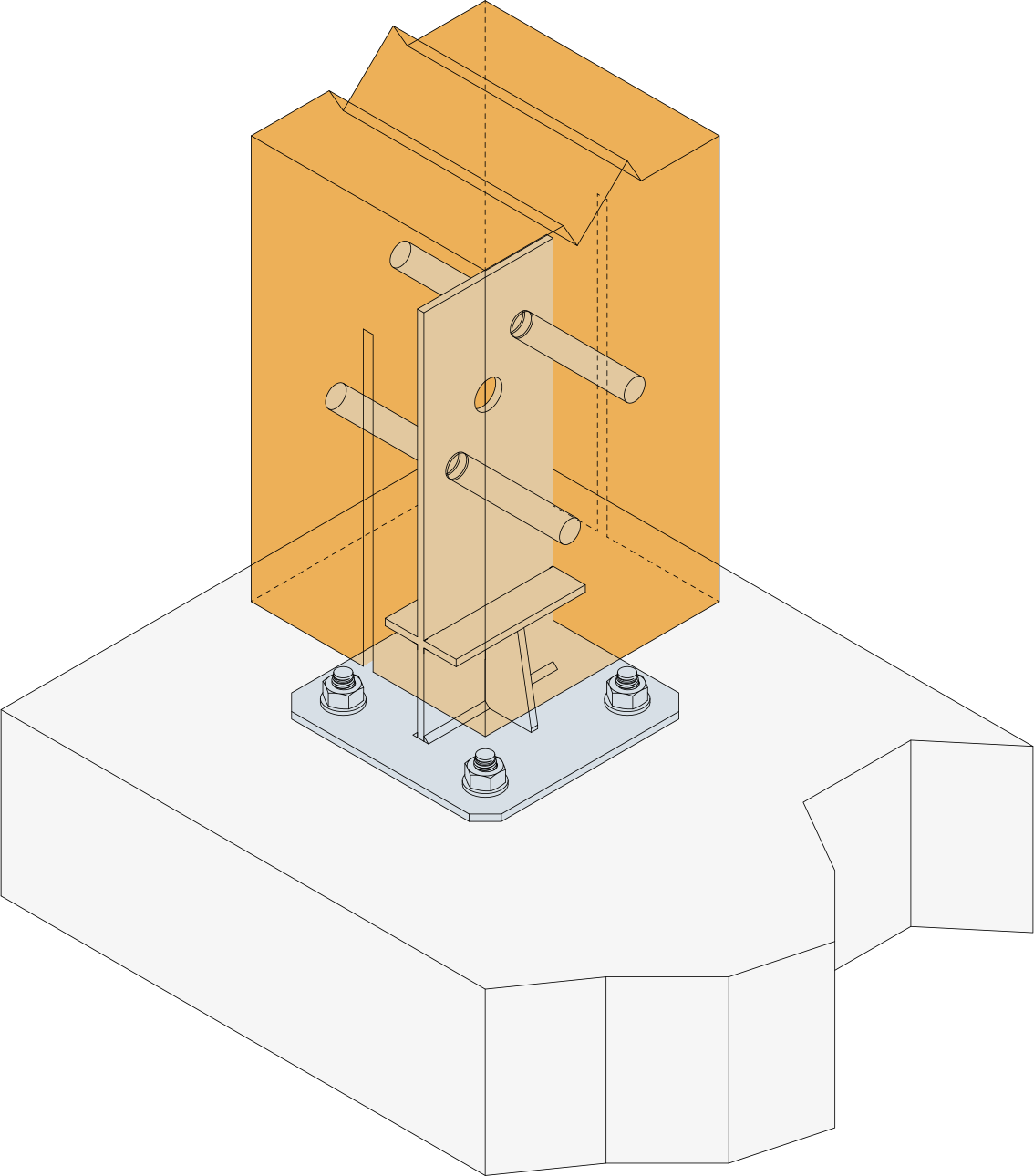

Installatie
Installatie

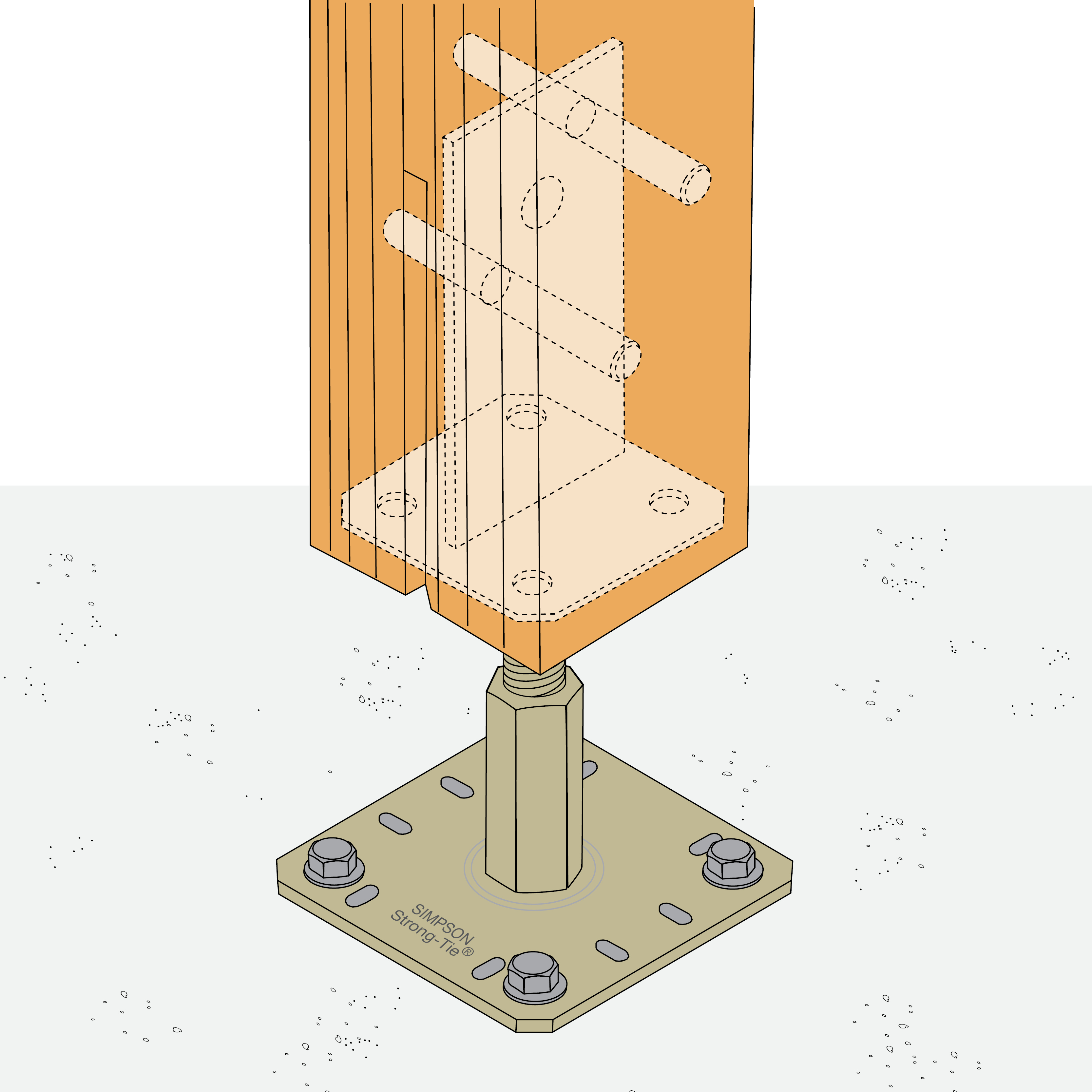

Bevestiging 2 pennen

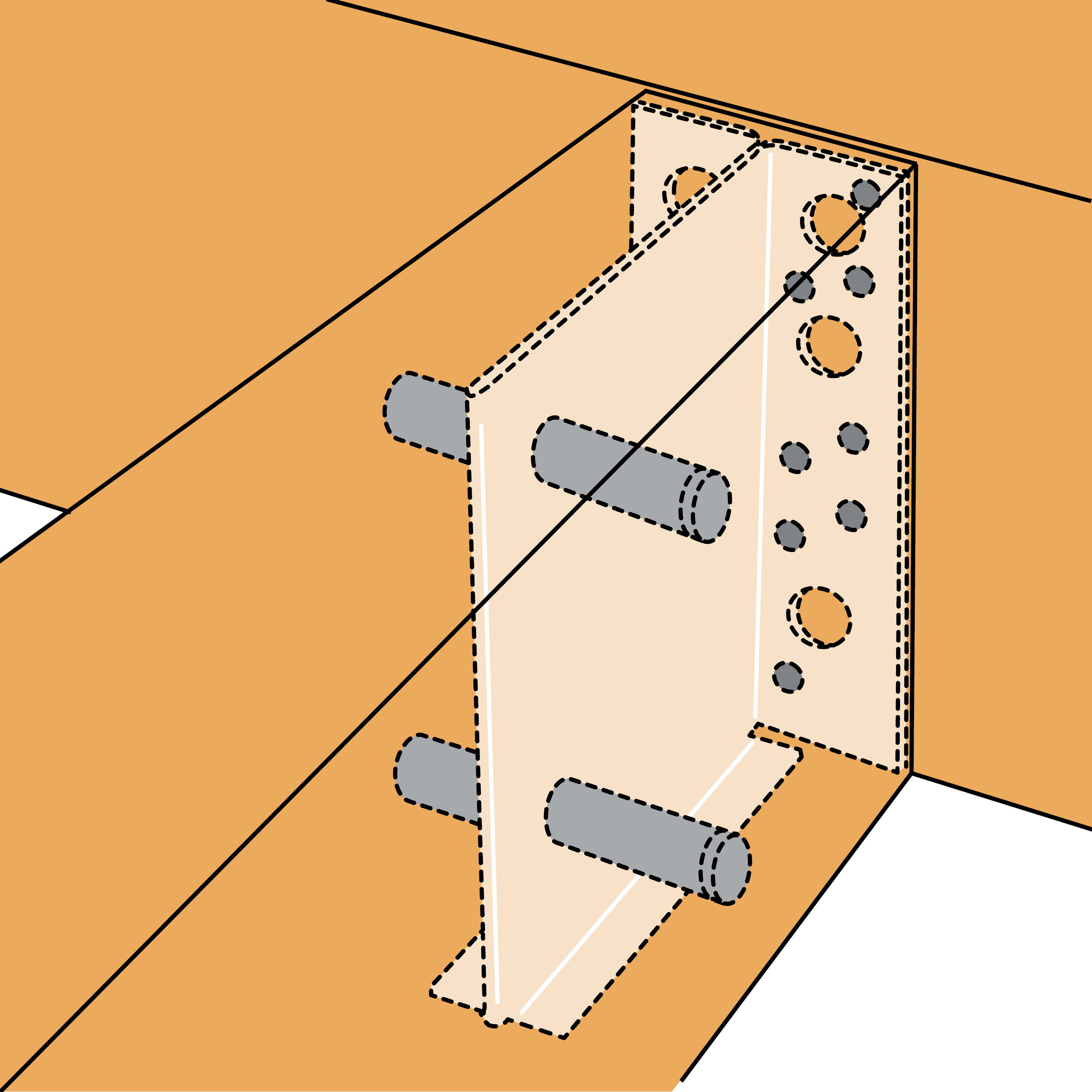

Dwarsbalkverbinding op balk

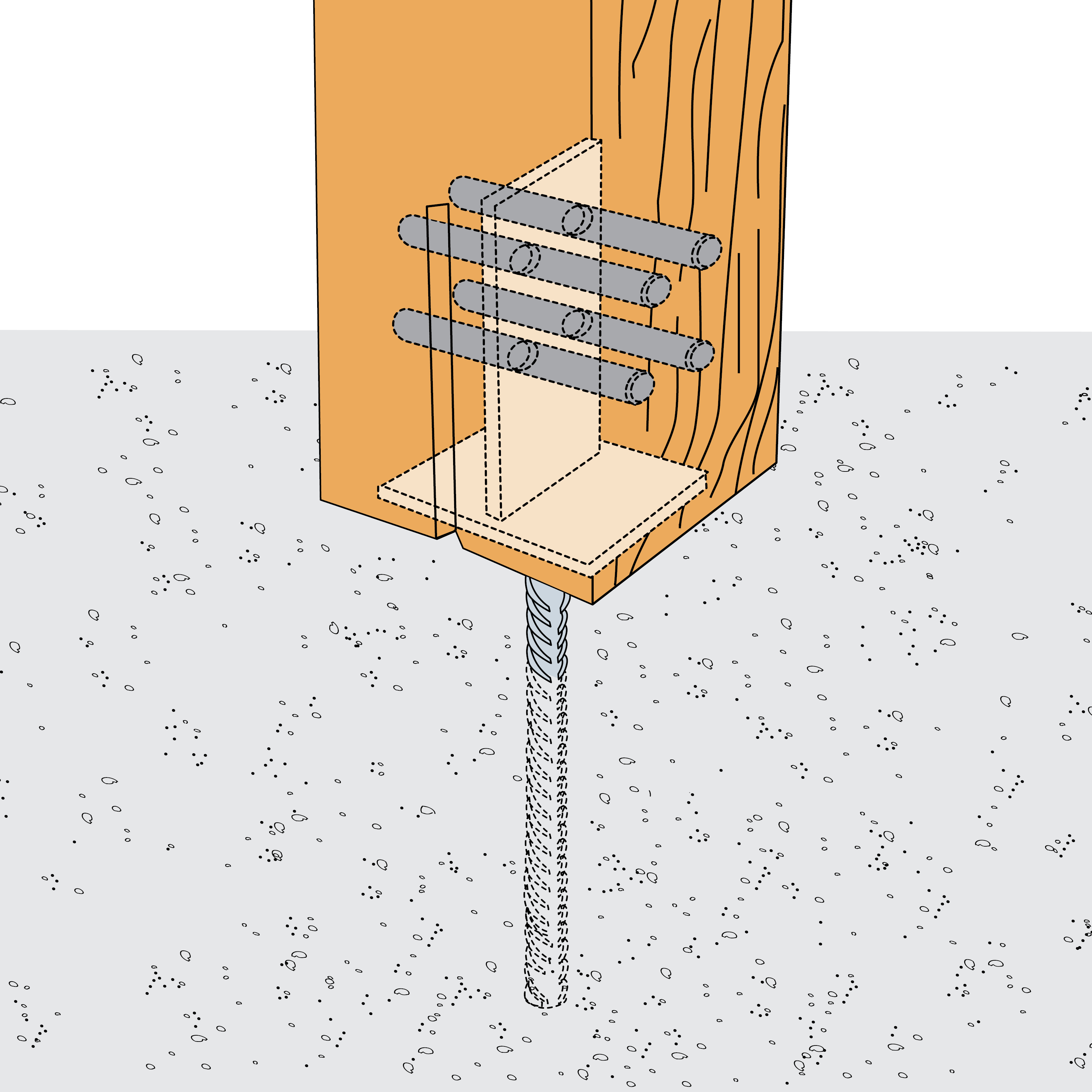

Bevestiging van de kolomvoet door verankering in het beton.
